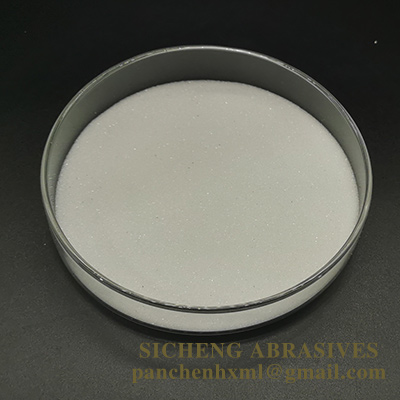

Glass Microsphere 70-110um Beads Blasting Media
Glass microspheres 70-110μm beads blasting media are spherical, clean, inorganic abrasives with uniform particle size and good flowability, providing a gentle sandblasting process that does not damage the substrate.They have moderate hardness and uniform rebound, enabling surface cleaning, deburring, and stress strengthening of workpieces while creating a fine and uniform finish. The product is free of free silicon and iron, produces less dust, is not easily broken, has a high recyclability, lower operating costs, and is more environmentally friendly.It is mainly used for surface treatment, shot peening, and surface brightening of aluminum alloys, stainless steel, precision hardware, medical devices, and automotive parts.
Characteristic:
The chemical composition is inert silicon dioxide without disturbance of chemical activity
Round elastic particles, impact resistant, can be recycled many times with less loss
Small wear to spray, prolong nozzle service life
Round ball surface, will not damage the processing surface and precision size
With glass beads for blasting，the workpiece surface is smooth, with a special aesthetic feeling, improve the product value
Suitable for dry and wet sand blasting
Fine glass beads are used to show metal microcracks easily after wet sandblasting
Physical and Chemical Composition
| Chemical Composition（%） | |
| SiO2 | 73.00 |
| Na2O | 14.30 |
| CaO | 9.20 |
| Al2O3 | 2.00 |
| MgO | 4.0 |
| K2O | 0.60 |
| SO3 | 0.30 |
| Fe2O3 | 0.11 |
| Typical Physical Properties | |
| Hardness: | Mohs:6-7 HRC:46 |
| Specific Gravity: | 2.5 g/cm3 |
| Bulk density(LPD): | 1.6 g/cm3 |
| Refractive Index(RI) | ≥1.5 |
| Round rate | ≥80.0% |
| Magnetic content | ≤0.1% |
| Particle appearance: | colorless ,glass transparent without impurities, Round and smooth |
Available Sizes
| GB NO. | Mesh(U.S. standard） | BEAD SIZE RANGE (Dia. um) | BEAD SIZE RANGE (Dia. Inch) |
| GB NO.3 | 20-30 | 850-600 | 0.0331-0.0234 |
| GB NO.4 | 30-40 | 600-425 | 0.0234-0.0165 |
| GB NO.5 | 40-50 | 425-300 | 0.0165-0.0117 |
| GB NO.6 | 50-70 | 300-212 | 0.0177-0.0083 |
| GB NO.7 | 60-80 | 250-180 | 0.0098-0.0070 |
| GB NO.8 | 70-100 | 212-150 | 0.0083-0.0059 |
| GB NO.9 | 80-120 | 180-125 | 0.0070-0.0049 |
| GB NO.10 | 100-170 | 150-90 | 0.0059-0.0035 |
| GB NO.11 | 120-200 | 125-75 | 0.0049-0.0029 |
| GB NO.12 | 140-230 | 106-63 | 0.0041-0.0025 |
| GB NO.13 | 170-325 | 90-45 | 0.0035-0.0017 |
Application:
Mainly using for the surface sandblasting and shot blasting of metals,glass,rubber and plastics,acrylic,and can avoid the workpieces be damaged.
Glass beads are a reusable abrasive and are mainly used in blast rooms and blast cabinets. Glass beads contain no free iron to cause corrosion on non-ferrous surfaces, therefor glass beads are very suitable to use on all types of metals. Since it doesn’t create an anchor profile, it is mainly used to clean a substrate without roughening it or to polish the surface. Glass beads also can blasting with compressed air.
It suitable for blasting work as below:
- Blasting aviation parts by glass beads will eliminate stress, to increase the fatigue strength and reduce friction and wear
- Weld steel workpiece cleaning and removal of surface scratches and other beauty processing
- Line cutting clean rust mold
- The appearance of decorative art
