Aviation Standard AMS 2431/6C Shot Peening Glass Beads

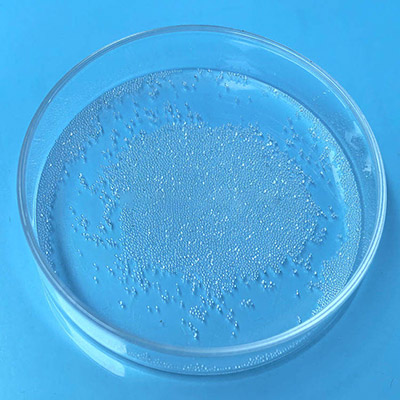

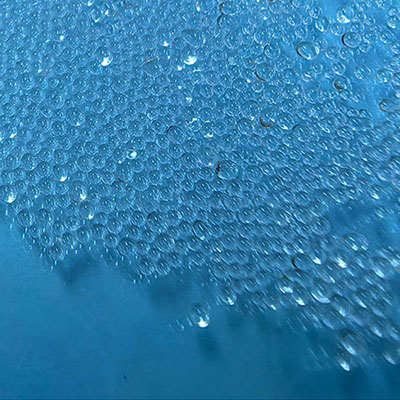

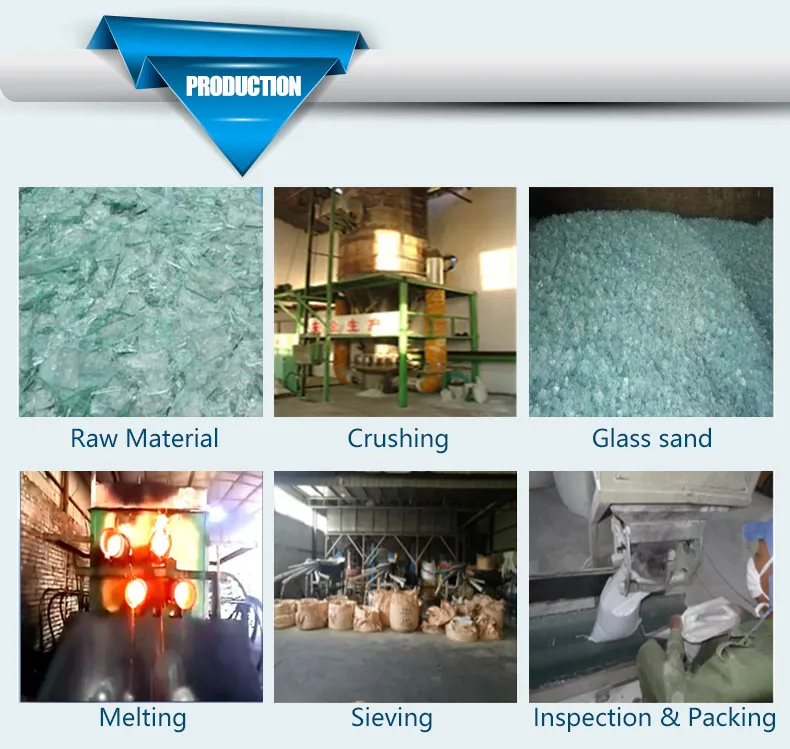

Aviation shot peening glass beads are a material used for surface treatment of metal parts in the aviation industry. They are spherical particles made from broken glass sand such as broken glass and flat glass, which are melted and processed at high temperatures. Glass pellets rely on power such as compressed air or mechanical centrifugal force to spray and cover the surface of the workpiece at high speed. The impact force of the pellets forms residual compressive stress on the surface of the part, effectively suppressing the initiation and propagation of fatigue cracks, thereby improving the fatigue strength and corrosion resistance of the part. Shot peening glass beads (glass shot) have strict particle size distribution and roundness standards, and the shot blasting effect is uniform.

Product Advantages

Characteristics of Aviation Standard AMS 2431/6C Shot Peening Glass Beads:

1. The chemical composition is high-quality sodium calcium glass microsphere, with a silicon dioxide content of min 67%.

2. The arsenic content of glass shot blasting shall not exceed 75ppm, and the lead content shall not exceed 100ppm.

3. More than 90% of the glass pellets have a hardness between 500-550HV or 515-575HK. 48~52HRC can also be used as a reference.

4. The true density should not be less than 2.3g/cm.

5. Magnetic particles should not exceed 0.1% of the original sample weight.

6. Glass shot peening with a projected area covered by inclusions (including bubbles) exceeding 20% should not exceed 10%.

7. Coating: No silane or any other coating material.

Detailed Images

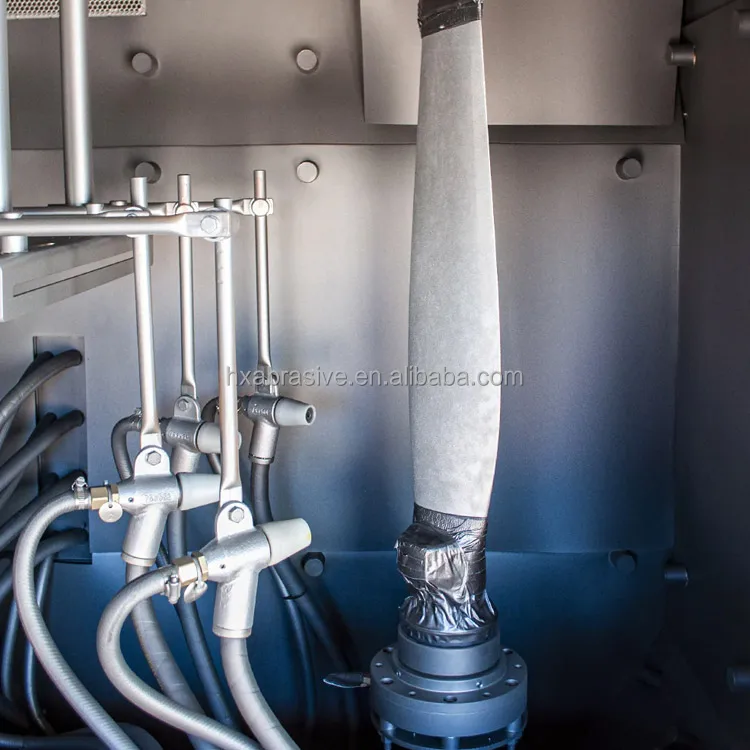

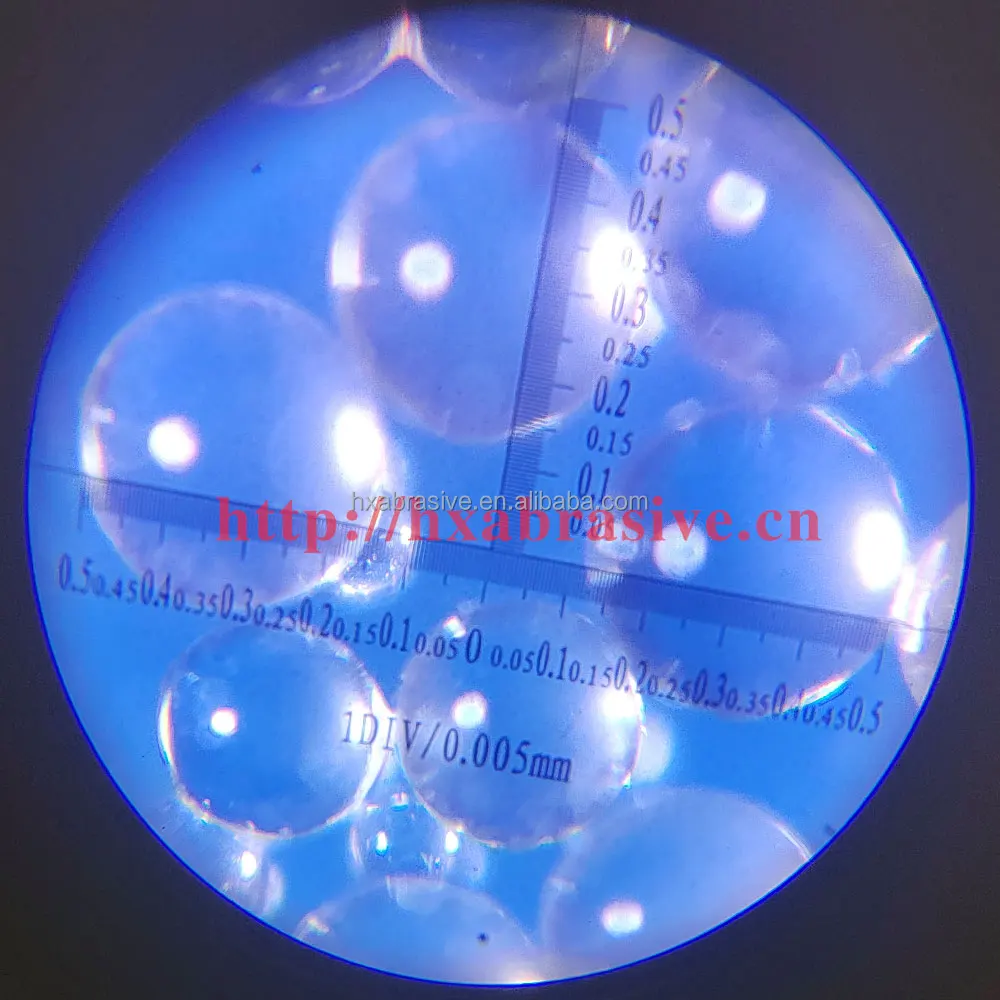

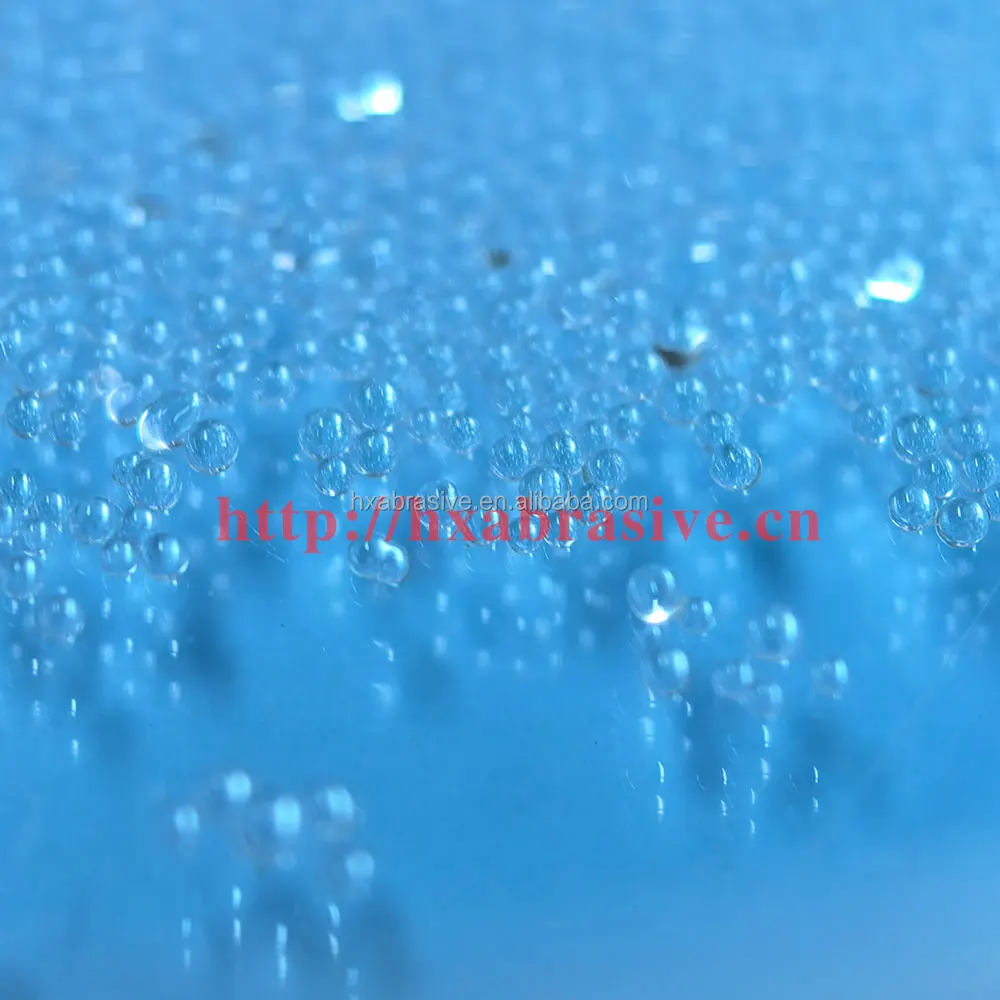

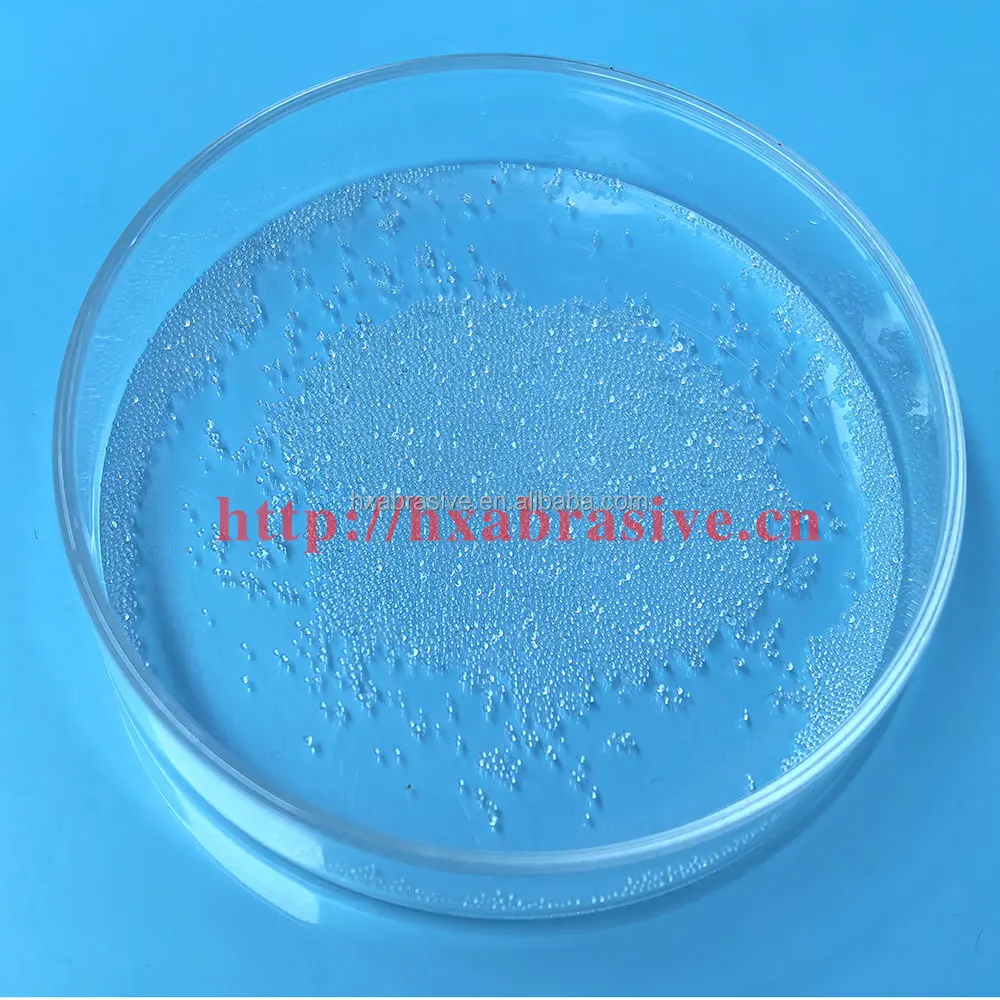

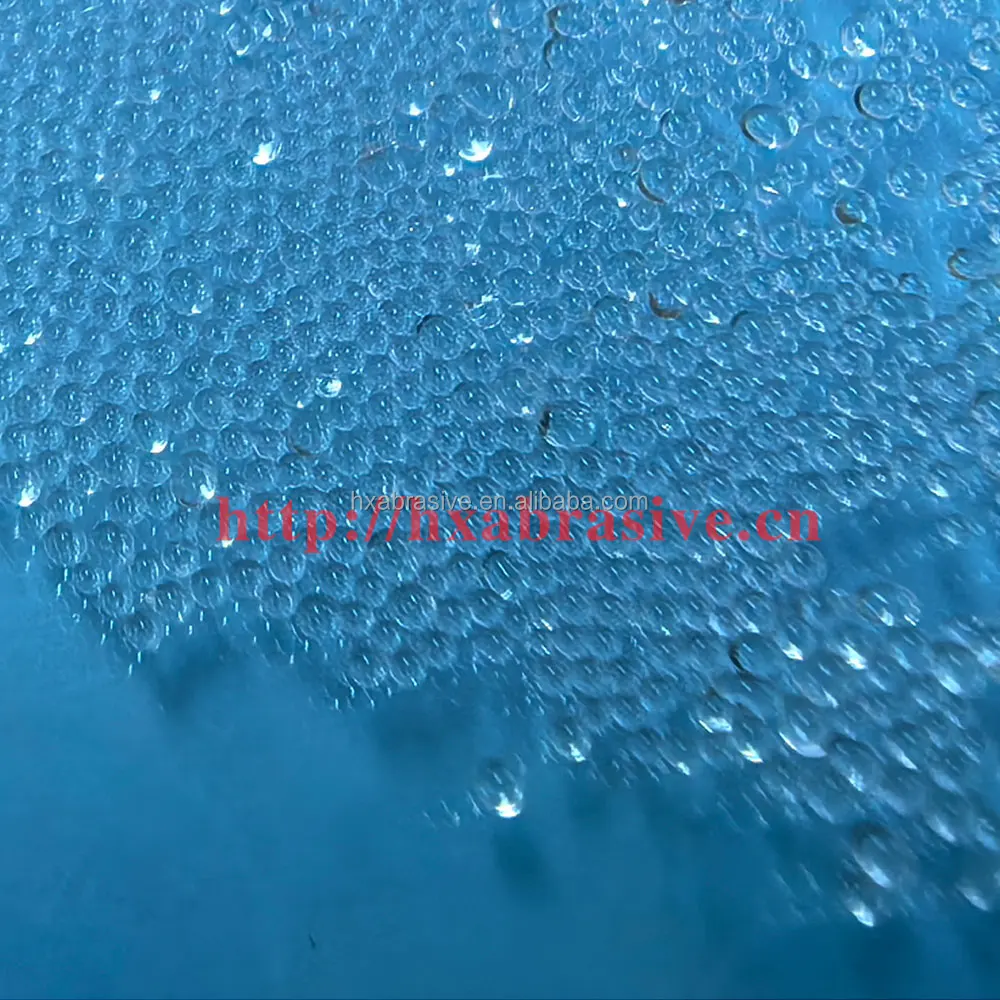

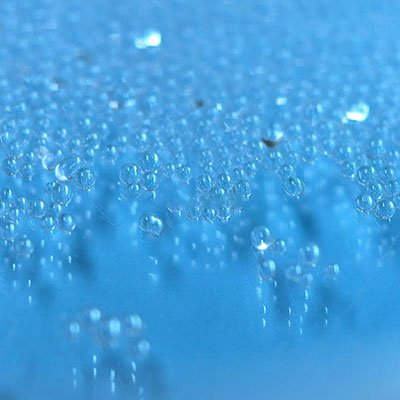

Aviation Standard AMS 2431/6C Shot Peening Glass Beads AGB-25 AGB-20

Product Index

Chemical composition:

SiO2	71.0%
NaO2	14.0%
Fe2O3	0.1%
Al2O3	2.0%
MgO	4.0%
CaO	7.0%
Magnetic	≤0.1%
Others	0.016

Physical Index:

Hardness	Mohs 6-7
Specific gravity	2.5 g/cm3
Bulk density	1.6 g/cm3
Reflective Index	≥1.5
Roundness	≥80.0%
Appearance	Colorless transparent microsphere

Specifications

Spec.	Roundness %(≥)	Irregular particle ratio(%)	Particle range(mesh)	Particle range (um)	Mesh NO.1		Mesh NO.2		Mesh NO.3		PAN
Spec.	Roundness %(≥)	Irregular particle ratio(%)	Particle range(mesh)	Particle range (um)	100% Passing mesh NO.	Mesh size(um)	Min 95% Passing mesh NO.	Mesh Size (um)	Max 15% retain mesh NO.	Mesh Size (um)	Max 5% retain mesh NO.	Mesh Size (um)
AGB-200	80	0.5	8-12#	1700-2360	7	2800	8	2360	12	1700	14	1400
AGB-170	80	0.5	10-14#	1400-2000	8	2360	10	2000	14	1400	16	1180
AGB150	80	0.5	12-16#	1180-1700	10	2000	12	1700	16	1180	20	850
AGB-100	65	3.0	14-20#	850-1400	12	1700	14	1400	20	850	30	600
AGB-70	65	3.0	20-30#	600-850	18	1000	20	850	30	600	40	425
AGB-50	70	3.0	30-40#	425-600	25	710	30	600	40	425	45	35
AGB-35	70	3.0	40-50#	300-425	35	500	40	425	50	300	60	250
AGB-30	70	3.0	45-60#	250-355	40	425	45	355	60	250	70	212
AGB-25	80	3.0	50-70#	212-300	45	355	50	300	70	212	80	180
AGB-20	80	3.0	60-80#	180-250	50	300	60	250	80	180	100	150
ABG-18	80	3.0	70-100#	150-212	60	250	70	212	100	150	120	125
AGB-15	80	3.0	80-120#	125-180	70	212	80	180	120	125	140	106
AGB-12	85	3.0	100-170#	90-150	80	180	100	150	170	90	200	75
AGB-10	90	3.0	120-200#	75-125	100	150	120	125	200	75	230	63
AGB-9	90	3.0	140-230#	63-106	120	125	140	106	230	63	325	45
AGB-6	90	3.0	170-325#	45-90	140	106	170	90	325	45	400	38

Product Applications

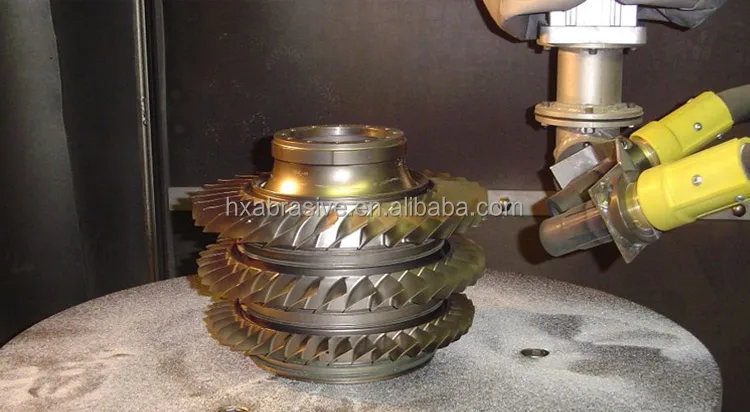

Used for surface treatment of aviation engine blades, aircraft landing gear, aircraft skin and other aviation parts, it can eliminate stress, increase fatigue strength, improve surface hardness and wear resistance, remove burrs, improve surface quality, etc.

Aviation Standard AMS 2431/6C Shot Peening Glass Beads AGB-25 AGB-20
